My design for a mobility scooter

Wibbles

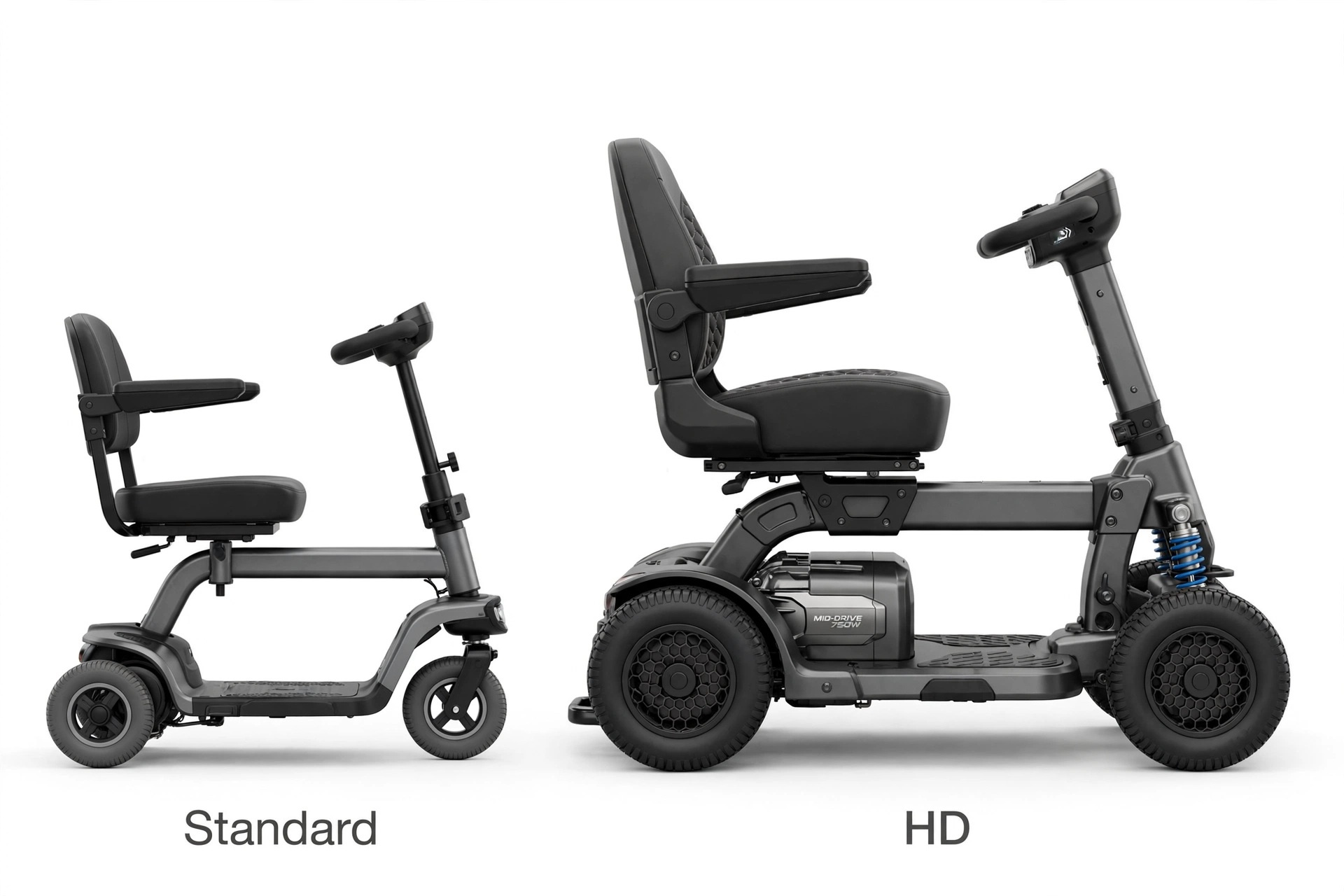

Here are the specs:

Spec	PP4 Standard	PP4 HD	Reason
Max user weight	120 kg / 265 lbs	160 kg / 353 lbs	Reinforced chassis + motor
Total weight	17.5 kg	22.8 kg	Thicker frame, bigger battery
Weight w/o battery	14.2 kg	18.1 kg	Still liftable in 2 parts
Motor	250W hub	350W mid-drive + gearbox	More torque for hills + weight
Battery	36V 7Ah, 252Wh	48V 10Ah, 480Wh, 4.7 kg	25-30 mile range
Wheels	8”/10” solid	10”/12” airless honeycomb	Better curb climbing, comfort
Frame	7000 Al monocoque	7000 Al + carbon reinforcement	Stiffness at higher loads
Seat	Textile sling 42cm	Textile sling 48cm, gel insert	Wider + pressure relief
Suspension	None	Front elastomer + seat post shock	Rough pavements, cobbles
Brakes	Regen + EM park	Regen + EM park + manual drum	Redundancy for weight

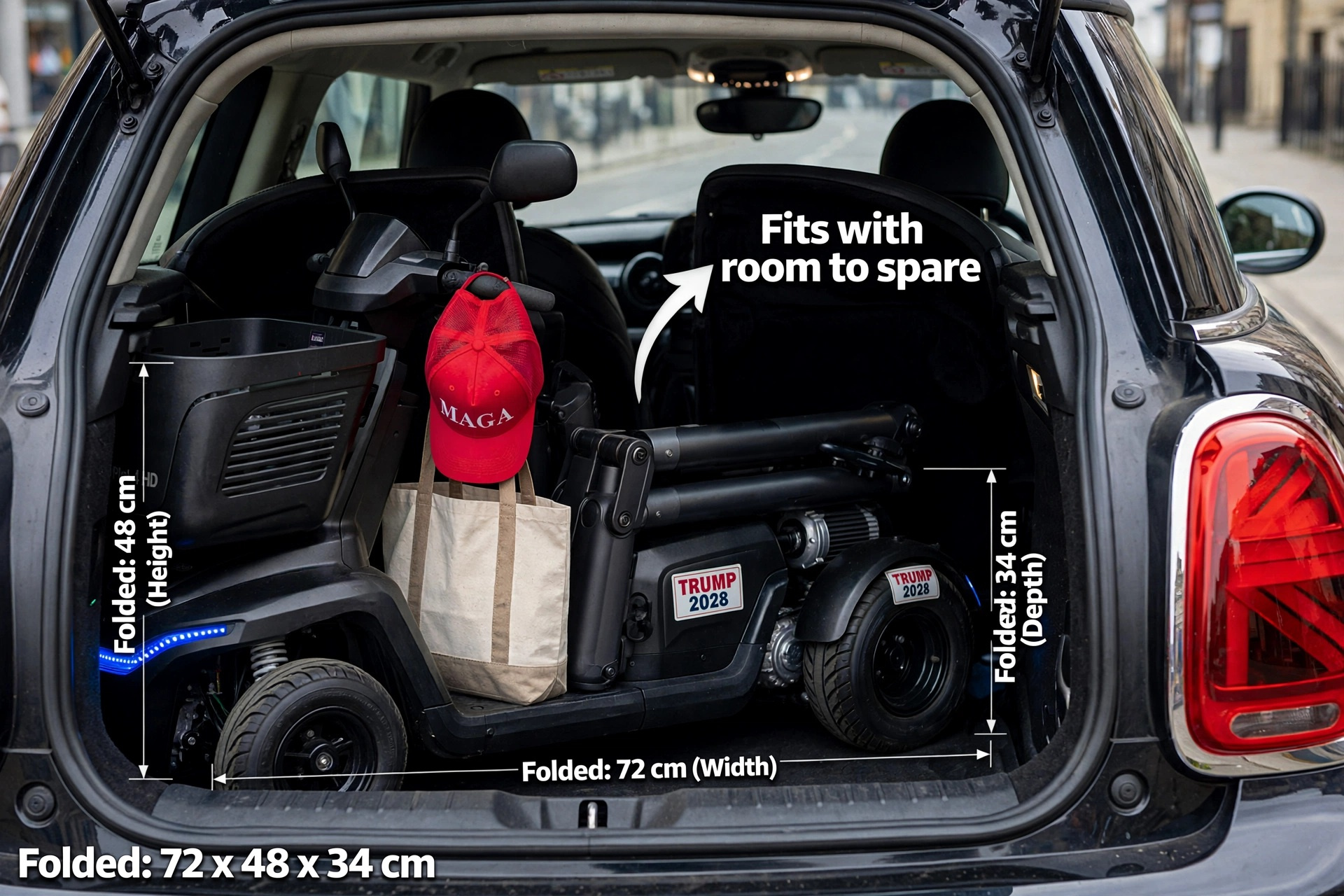

Folded size	68 x 45 x 32 cm	72 x 48 x 34 cm	Still fits Fiesta/Golf boot
Incline	1:6 / 9.5°	1:4 / 14°	350W + gearing

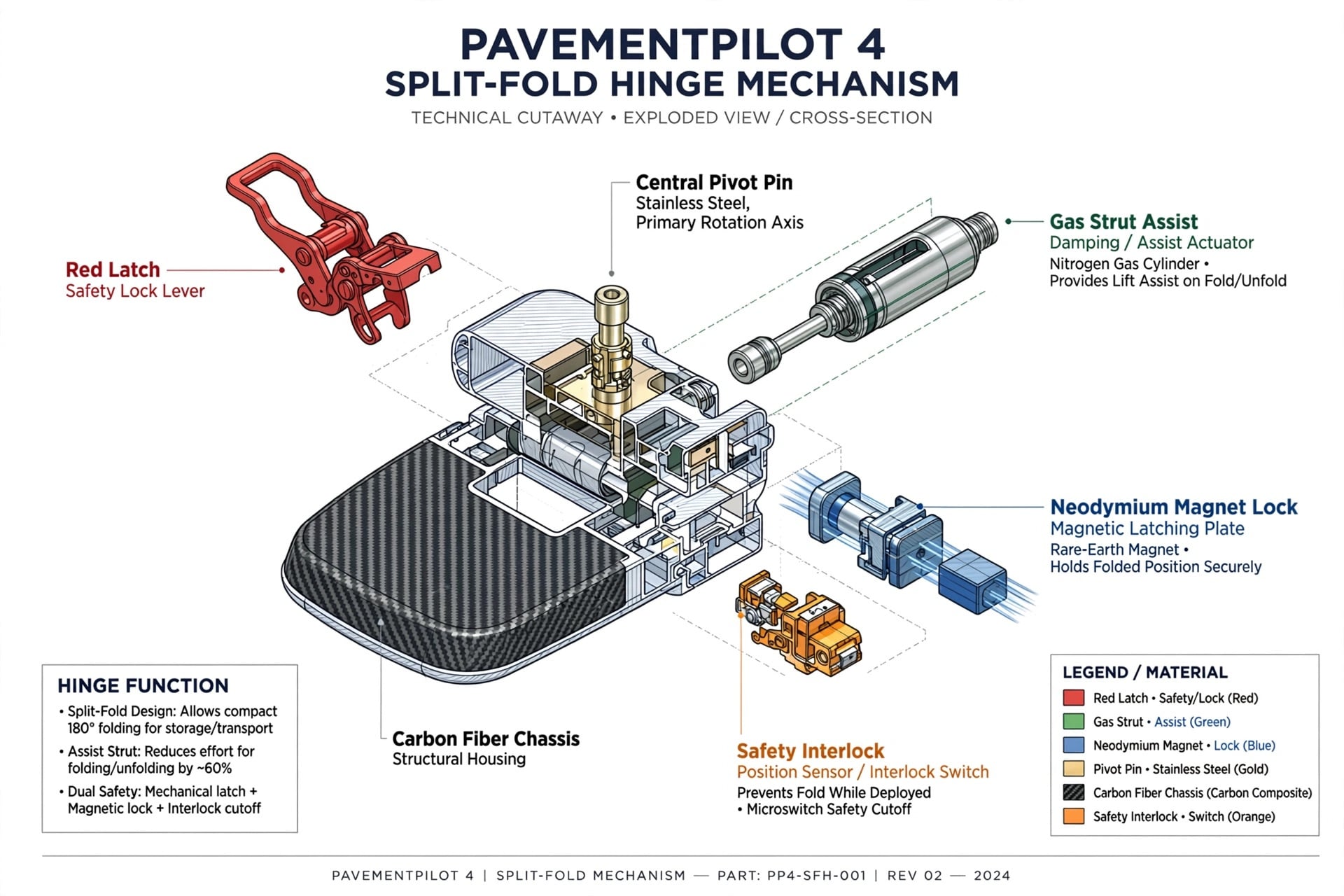

Here’s the cutaway of the Split-Fold hinge showing how the gas strut, magnet lock, and safety interlock work together. The red latch releases everything at once, and the strut handles the heavy lifting so folding takes ∼3 seconds.

Rachel_Scope

Looks nice @Wibbles! How did you make it?

StarryEyed

Hi Wibbles. Is that for real, or just theoretical?

Wibbles

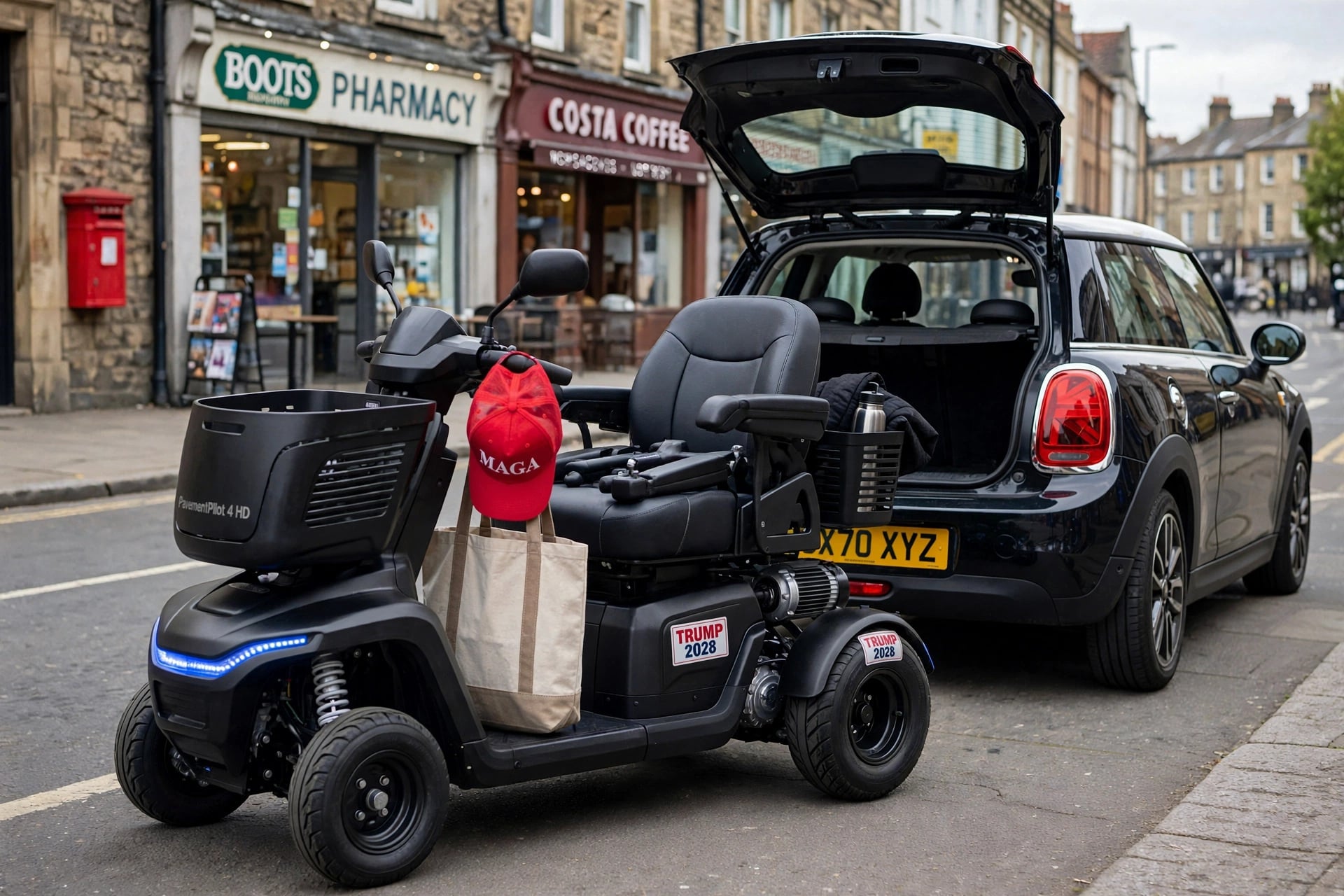

Here it is "fully loaded" with bodywork and fenders…

What do you think ?

I found this elderly gentleman and asked him if he minded being in a shot…

StarryEyed

Oh, I get it now. It's a prototype you've designed for senile people. Good luck getting the funding. Perhaps you would find success with crowdfunding?

SheffieldMan1976

Well Trump's definitely senile 😀

StarryEyed

https://forum.scope.org.uk/discussion/comment/1138559#Comment_1138559

😊
